Product Details

  • Product Details

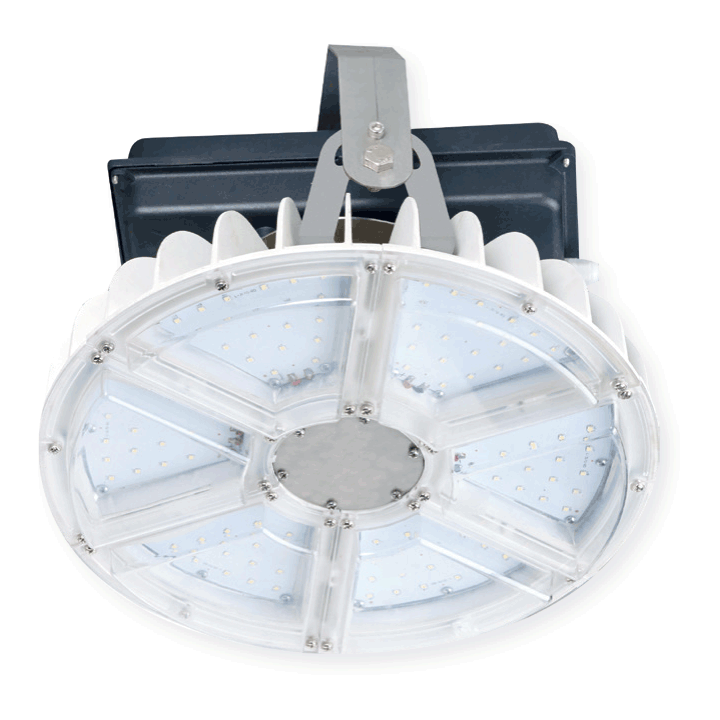

MOONBAY

Color:

• High efficacy
• Various color tempereture
• Pendent mount Luminaire
• Low Power SMD Luminaire for Warehouse, Industrial area
• Aluminium Diecast heatsink
• Available in White / Black I Grey shade

Class: CLASS C
Inrush current: 0.9 A
Leakage current: < 0.75 mA / 240 VAC
Type of Driver: Constant Current [CC]
Efficiency: 94%
Identification Feature: Unique Serial No. Printed on each Lamp
Heat Sink Make: LRPL
Input Current: 0.9 A
Input Frequency: 50Hz
Input Voltage: 230V
IP Standard: IP65
Junction Temp. -Tj: 99°C
Lamp Life: 1,00,000 Hours Min.
Starting lime: Rapid (0.2 Sec)
Lumen Efficacy (lml Watt): 111 lm / W
Luminaries wattage: 150W / 180W / 200W
Make of Fixture: LRPL
MOC-Heat Sink: Aluminum Costing - LM 06
LED type / No of LED Lamp: Bridgelux
Output Protection: Short Circuit, Over Voltage, Over Current
Power Factor: >0.95
Frequency Range: 47 ~ 63Hz
Actual Tested Report of CITIZEN : Actual Operating test Report for 63,000Hrs
Certifications / Reports: LM70, LM80 / Photo Bio. Test / Vibration Test
SP Ratio: 2-2.25
MacAdam Ellipse Stage: STEP 3
Surge Protection: L-N : 4KV
Temperature Class: T6
Case Temp.-Tc: 70°C
Total Weight: 6.75 Kg
Total Lumen @Tc 25°C: 25200 lm for 180W
Optics Type: Gloss Lens / Diffuser
Ught Spreading Angle: 60° / 90° / 120°
Withstand Voltage: 1/P-/P :- 3.75K VAC Min.
